Feature：
* 5050 RGB color
* Size：1000*10mm
* Beam Angle：120 °
* LED：150LED/roll ( 30LED/M )
* NON waterproof IP20
* 3M tape in the back:200MP yellow 3M tape
* Working Voltage ：DC12V
* Working Current : Max 600mA/M
* Power：7.2W/M
* CE Certificated
* PCB :double sides PCB
* Warranty :2 years warranty
Application
*Cove lighting
*Architectural lights for canopy, corridor, window, archway
Backlight or edge lighting for signage
* DIY lights for home use
* Path and contour marking
* Decorative lights for holiday, event, show, exhibition
* Special light effect for art gallery and glass-made items
The following parameter all in DC12V
Item NO. | color | LED (pcs/m) | Voltage (V) | Power(W/M) | Package |
DY-SRGBW30F012-5050 | RGB | 30 | 12 | 7.2 | 5m/roll |
Safety Information
* The strip itself and all its components may not be mechanically stressed.
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable electrical and safety standards. Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements

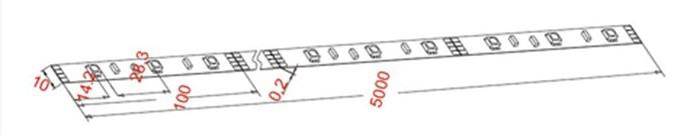

Dimension (mm)

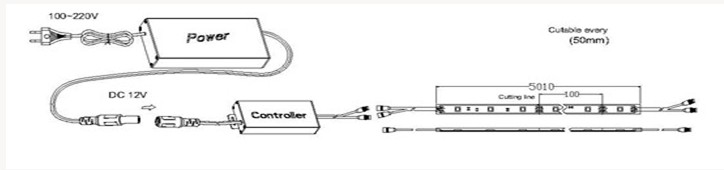

Connection
